Sagola 4600 Clear Spray Gun

$895.00 USD

~~$895.00 USD~~ $895.00 USD

Sale Sold out

Shipping calculated at checkout.

Needle/Nozzle 1.20mm 1.25mm 1.30mm 1.35mm 1.40mm

Style Non-Digital Digital

Quantity

Free Priority Processing

Get Free "Skip The Line - Priority Processing" just for being a TSS Professional!

Description

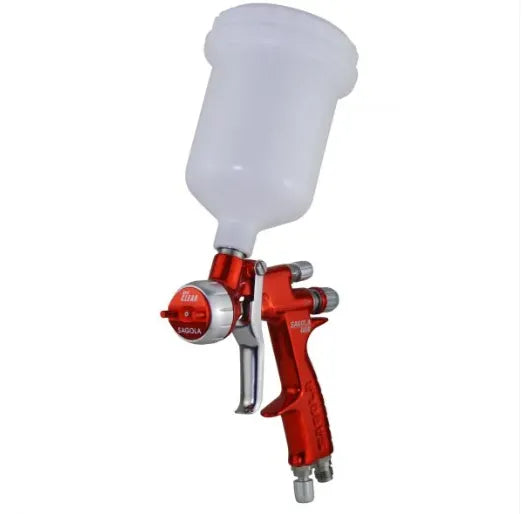

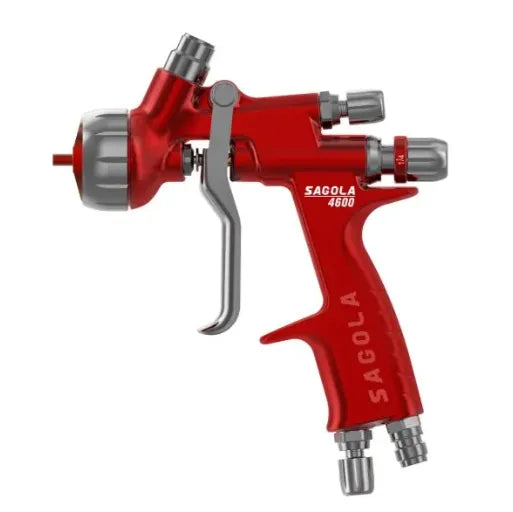

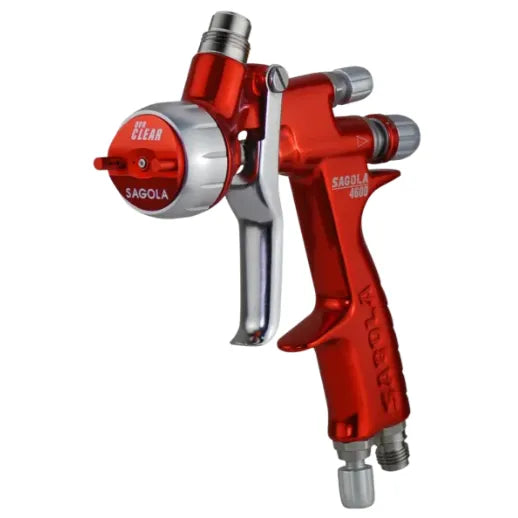

Sagola 4600 Clear Spray Gun

The Sagola 4600 Clear spray gun is expertly crafted for applying clearcoats, high solids, ultra-high solids, and single-stage paints. It excels in achieving OEM-quality finishes, ensuring maximum application speed and minimal overspray. This model offers ultra-fine atomization for a flawless finish. Ideal for professionals seeking precision and efficiency in their painting process.

Introducing the Sagola 4600 Clear Gravity Spray Gun, our leading model for clearcoat applications, engineered to redefine industry standards. This spray gun features:

Optimized for Clearcoats: Achieves ultra-fine atomization with reduced overspray, enhancing clearcoat applications for ultimate gloss and finish.
Precision and Consistency: Offers a stable fan pattern that ensures precise color matching and seamless layering of clearcoats.
Uniform Coverage: Delivers a flawless, high-gloss finish with even particle distribution, reducing the need for touch-ups.
Ergonomic Comfort: Designed for ease of use, it feels like an extension of your hand, reducing fatigue during extended use.
Effortless Performance: Simple to operate, this spray gun guarantees a superior clearcoat finish every time, with minimal effort.
Economic Efficiency: Utilizes Dynamic Flow Technology™ to save on air and minimize material bounce back, enhancing efficiency and reducing waste.

Master the art of clearcoat application with the Sagola 4600, your ultimate tool for achieving perfection in every job.

Interchangeable Parts
Consistent high quality finishes
Low Maintenance

Size Guide

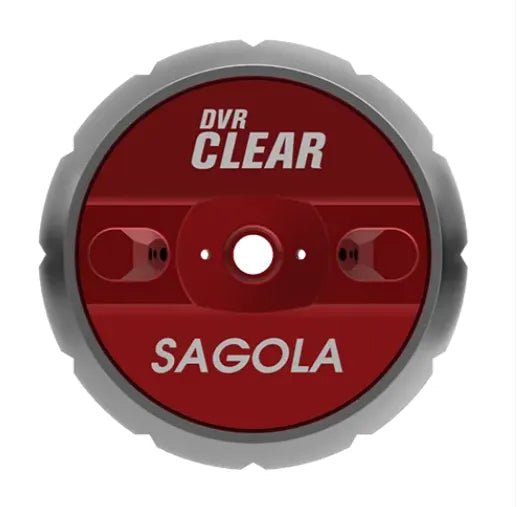

Air Cap Specifications:

	Base Air Cap	Clear Air Cap	Clear Pro Air Cap	HVLP Air Cap
Output Flow	191 – 227 g/min / 6.7 – 8 oz/min	185 – 219 g/min / 6.5 – 7.7 oz/min	196 – 229 g/min / 7 – 8 oz/min	170 – 198 g/min / 6 – 7 oz/min
Air Consumption	280 L/min / 9.88 cfm	295 L/min / 10.42 cfm	315 L/min / 11.12 cfm	450 L/min / 15.89 cfm
Fan Width	290 – 315 cm / 11.4 – 12.4”	275 – 295 cm / 10.8 – 11.6”	285 – 310 cm / 11.2 – 12.2”	290 – 325 cm / 11.4 – 12.8”
Application Distance	18 – 20 cm / 7 – 7.9”	18 – 20 cm / 7 – 7.9”	18 – 20 cm / 7 – 7.9”	15 – 18 cm / 6 – 7”
Air Inlet Pressure	1.8 – 2.0 bar / 26.1 – 29 psi	2.2 bar / 32 psi	2.2 bar / 32 psi	2.0 bar / 29 psi

Additional Information

Weight	N/A
Needle/Nozzle	1.20mm, 1.25mm, 1.30mm, 1.35mm, 1.40mm
Cup Capacity	650ml (22fl oz)
Cup Type	Removable Anti-Drip System
Air Inlet Couplings	6.35mm (1/4”) Male BSP
Paint Filter	80 Mesh
Weight with Supplied Cup	675g (1.49lbs)
Weight without Cup	492.8g (1.09lbs)
Sound Pressure Level (Average)	80 dB
Style	Non-Digital, Digital
