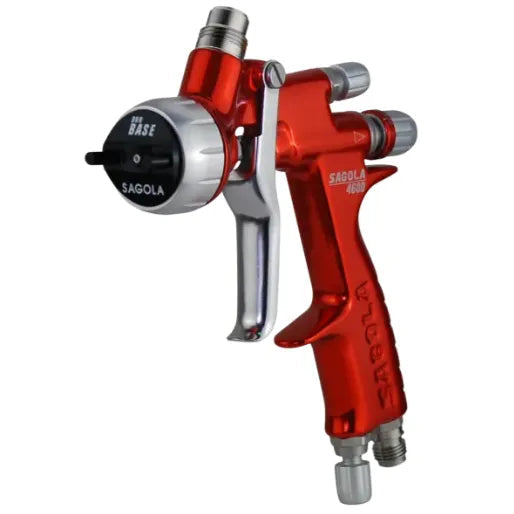

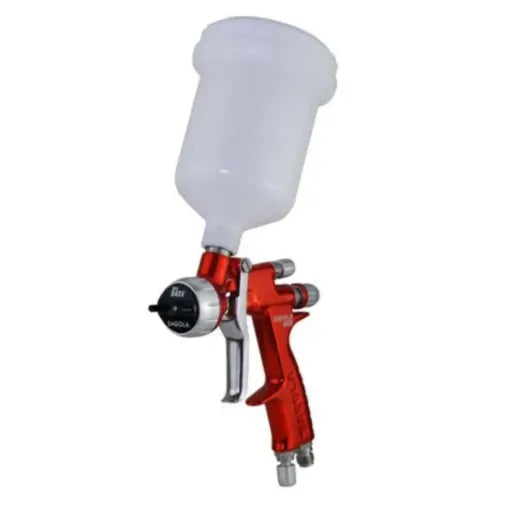

Sagola 4600 Base Spray Gun
The Ultimate Basecoat Spray Gun: Ideal for both waterborne and solvent basecoats, this spray gun is optimized for easy color matching of metallics, silvers, and pearls. It ensures consistent metallic hues even at low pressures and delivers HVLP performance while meeting EPA compliance.
Discover what sets the Sagola 4600 apart—designed for top performance and more…
This leading spray gun delivers exceptionally even and consistent paint coverage, perfect for challenging base colors including metallics, silver, and pearls. It effectively reduces typical painting issues like shadows, patch coats, and striping.
Experience increased efficiency with reduced paint, air, and time usage—cutting costs and enhancing your profitability on every job. Perfect for our customers across the USA.
-
Interchangeable Parts
-
Consistent high quality finishes
-
Low Maintenance
Type of Product: Spray Gun
Size Guide

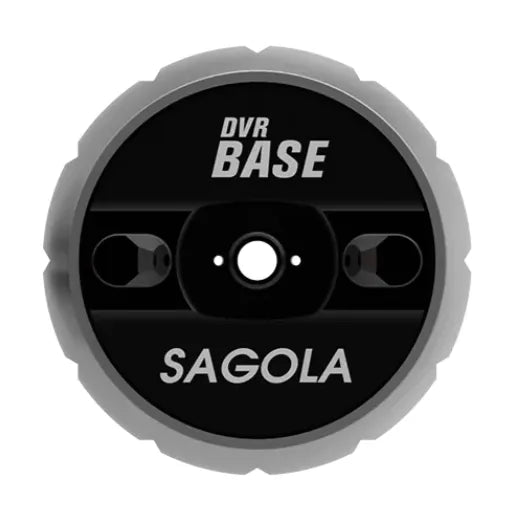

| Base Air Cap | Clear Air Cap | Clear Pro Air Cap | HVLP Air Cap | |
| Output Flow | 191 – 227 g/min / 6.7 – 8 oz/min | 185 – 219 g/min / 6.5 – 7.7 oz/min | 196 – 229 g/min / 7 – 8 oz/min | 170 – 198 g/min / 6 – 7 oz/min |
| Air Consumption | 280 L/min / 9.88 cfm | 295 L/min / 10.42 cfm | 315 L/min / 11.12 cfm | 450 L/min / 15.89 cfm |
| Fan Width | 290 – 315 cm / 11.4 – 12.4” | 275 – 295 cm / 10.8 – 11.6” | 285 – 310 cm / 11.2 – 12.2” | 290 – 325 cm / 11.4 – 12.8” |
| Application Distance | 18 – 20 cm / 7 – 7.9” | 18 – 20 cm / 7 – 7.9” | 18 – 20 cm / 7 – 7.9” | 15 – 18 cm / 6 – 7” |
| Air Inlet Pressure | 1.8 – 2.0 bar / 26.1 – 29 psi | 2.2 bar / 32 psi | 2.2 bar / 32 psi | 2.0 bar / 29 psi |
Additional Information
| Weight | N/A |
|---|---|
| Needle/Nozzle |
1.20mm, 1.25mm, 1.30mm, 1.35mm, 1.40mm |
| Cup Capacity |
650ml (22fl oz) |
| Cup Type |
Removable Anti-Drip System |
| Air Inlet Couplings |
6.35mm (1/4”) Male BSP |
| Paint Filter |
80 Mesh |
| Weight with Supplied Cup |
675g (1.49lbs) |
| Weight without Cup |
492.8g (1.09lbs) |
| Sound Pressure Level (Average) |
80 dB |
| Style |
Non-Digital, Digital |
